3.4 Inch Circular IPS TFT Display Module 800×800 MIPI Interface For Smart Home

Product Categories
Shenzhen Jingtai Liquid Crystal Display Technology Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

3.4 Inch Circular IPS TFT Display Module 800×800 MIPI Interface For Smart Home

Supply Ability : 2000K Pcs Per Month

Interface Definition : MIPI

Viewing Angle : 85/85/85/85

Luminance : 350 cd/m²(Typ)

Payment Terms : T/T,,L/C,MoneyGram,D/A,D/P

Key Words : 3.4 Inch IPS Round

CTP Structure : GF/GFF

Model Number : JT-3.4IPSRSH

Delivery Time : 1-5 weeks

MOQ : 5pcs

Price : 1-20

Certification : ISO9001 / ISO14000

Packaging Details : Standard Exportation Package

CTP Interface : 12c

Resolution : 800*800

Place of Origin : Shenzhen/China

Touch Screen : CTP

Brand Name : Jingtai

Contact Now

3.4 Inch Circular IPS TFT Display Module 800×800 MIPI Interface For Smart Home

Overview

This 3.4 inch smart home TFT LCD module features an 800×800 resolution with IPS full viewing angle technology for clear and stable image performance. Designed with a normally black display mode, the module delivers balanced color presentation and improved visual consistency in different lighting environments. The compact square display structure makes it suitable for smart home control panels, HMI devices, portable terminals, and IoT display applications.

With a MIPI interface and 350 cd/m² typical brightness, the display supports smooth signal transmission and reliable daily operation. The module outline measures 94.9 × 96.95 × 2.2 mm, helping simplify integration into compact product designs.


Display Features

  • 800×800 high-resolution IPS display
  • 85/85/85/85 wide viewing angles
  • Normally Black display mode
  • 1000:1 typical contrast ratio
  • 70% NTSC color gamut
  • 350 cd/m² typical brightness
  • Compact 3.4 inch square display structure


Application & Integration

  • Suitable for smart home control systems
  • Compatible with HMI and IoT display devices
  • MIPI interface for stable data transmission
  • Supports compact embedded product designs
  • Operating temperature: -20℃ to +70℃
  • Storage temperature: -30℃ to +80℃


This TFT LCD module is designed for applications requiring a compact high-resolution display with stable viewing performance and flexible system integration.


Product Specifications

Number Of Pixels

800*800pixels

Active Area

87.6*87.6mm

Module Outline

94.9*96.95*2.2mm

Display Model

Normally Black

Viewing Angle(CR>10)

85/85/85/85

Contrast Ratio

1000(Min) 1200(Typ)

NTSC

70%Typ

LCM Brightness

350 cd/m²(Typ)

Interface

MIPI

Operating Temperature

-20~+70℃

Storage Temperature

-30~+80℃

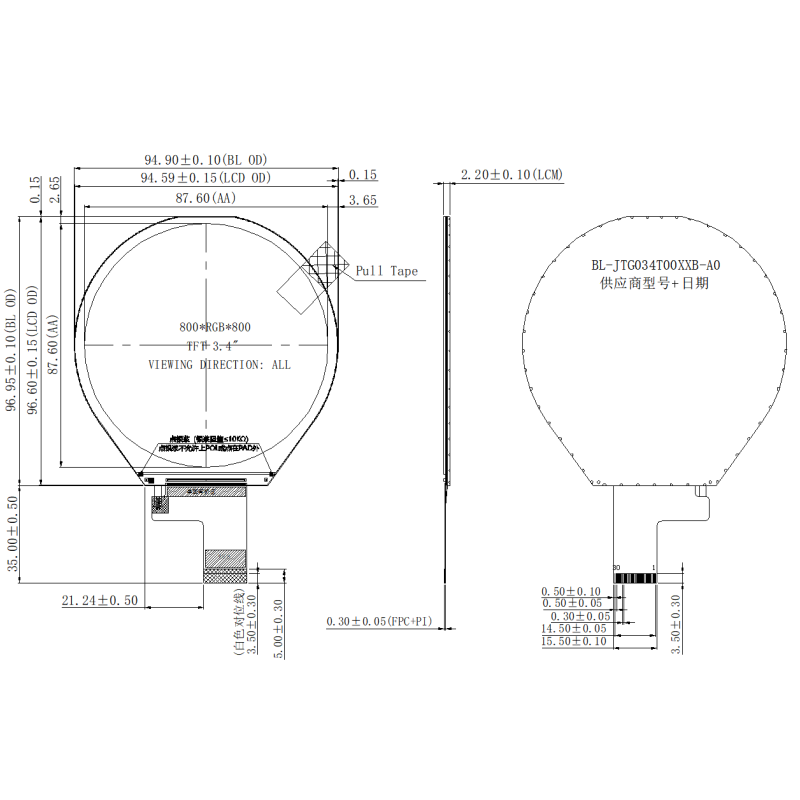

3.4 Inch Circular IPS TFT Display Module Drawing

3.4 Inch Circular IPS TFT Display Module 800×800 MIPI Interface For Smart Home

3.4 Inch Circular IPS TFT Display Module 800×800 MIPI Interface For Smart Home

3.4 Inch Circular IPS TFT Display Module 800×800 MIPI Interface For Smart Home
